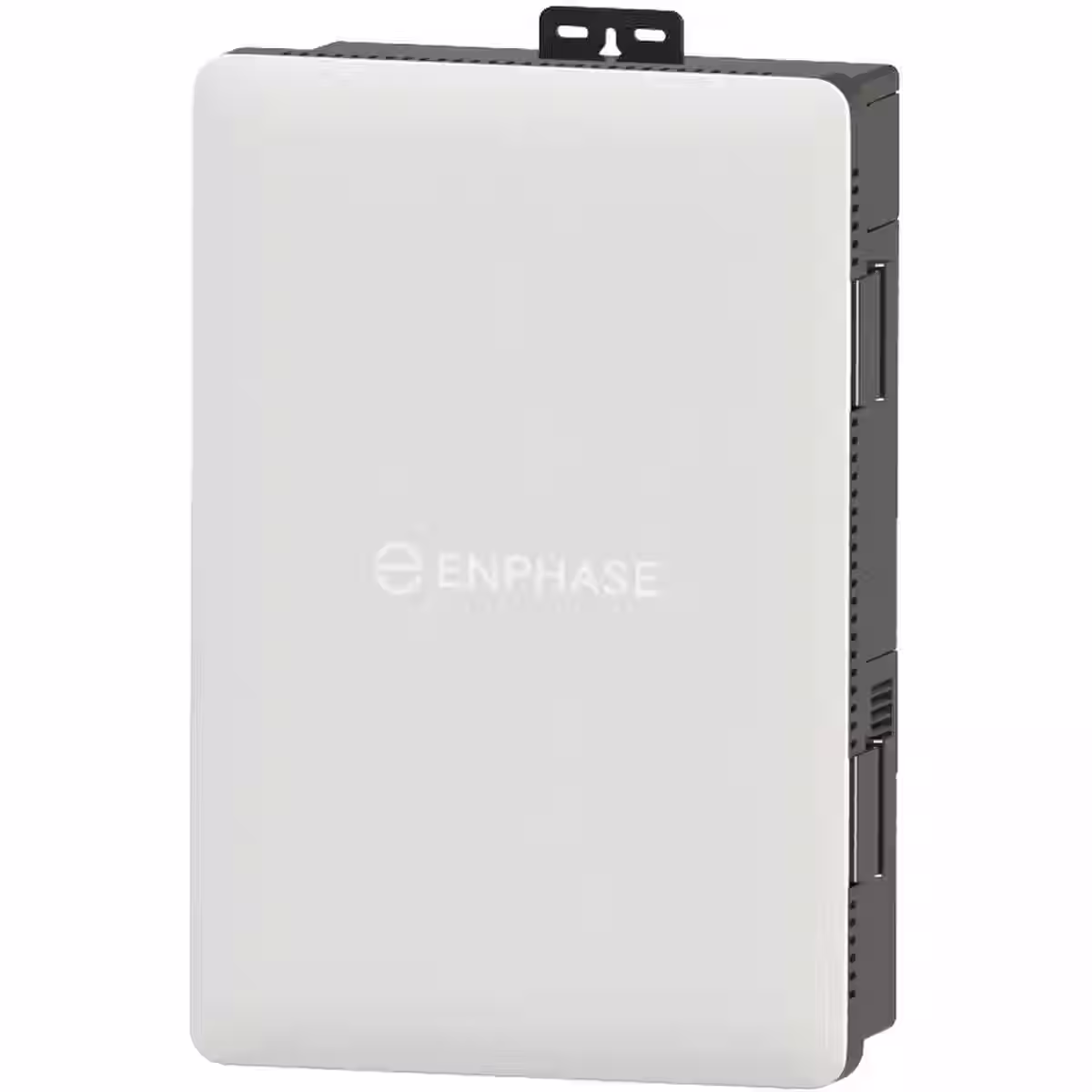

Enphase X-IQ-AM1-240-6C IQ Combiner

Enphase X-IQ-AM1-240-6C IQ Combiner, For IQ Battery 10C, Pre-Wired, 120/240 VAC, Integrated CCB and IQ Gateway and RGM & Optional Consumption Monitoring, Cell Modem w/ 5 Yr Data Plan, NEMA 3R
The IQ Combiner 6C (X-IQ-AM1-240-6C) consolidates interconnection equipment into a single enclosure, simplifying the installation of IQ Series Microinverters and IQ Batteries by offering a consistent, pre-wired solution for residential applications. IQ Combiner 6C is compatible with the IQ Battery 10C and IQ Meter Collar, serving as an all-in-one solution that includes breaker spaces for PV, battery, and an EV charger. It integrates a load controller with breaker spaces for loads and includes pre-installed and pre-wired current transformers (CTs) for PV and battery metering. The IQ Combiner 6C, together with IQ Microinverters, the IQ Meter Collar, and the IQ Battery 10C, provides a complete, backup-capable Enphase Energy System.
NOTE: This combiner is compatible with the newest IQ8 Series microgrid technology and is also backwards compatible with all previous generation microinverters (IQ6 & IQ7 Series Microinverters).
Battery System Controller Compatibility: Enphase IQ Battery 10C (IQBATTERY-10C-1P-NA) only. Not compatible with IQ 3/10/3T/10T or IQ Battery 5P (IQBATTERY-5P-1P-NA) and EP200G-SC2-RSD-KIT System Controller 2 or previous System Controllers.
Please see Compatibility Matrix under the Documents tab for clarification on your specific system.
Features
Smart
Integrated controller and IQ Gateway
Includes Enphase Mobile Connect (CELLMODEM-07-NA)
Supports flexible networking: Wi-Fi, Ethernet, or Cellular
Provides production and storage metering (revenue-grade)
Provides consumption/load/third-party PV and EV charger monitoring
Easy to Install
Pre-installed UL 489 certified device for Rapid Shutdown
Single stud mountable, with two screws
Supports multiple conduit entry options such as top right, top left, bottom left, bottom right, bottom rear, and bottom
Supports up to five PV, two battery, and one EV charger branch-circuit breakers
Bluetooth-based Wi-Fi provisioning for easy Wi-Fi setup
Built-in load controller with space for a double-pole breaker enables easy monitoring and control of heavy loads
Reliable
Durable NRTL-certified NEMA type 3R enclosure
UL-certified for safety and performance
Field-serviceable IQ Gateway and controller boards
15-year limited warranty
